Name: 40ft Skeleton Container Frame Trailer 3 Axles 4 Axles Steel
Brand: Harvest
Price: 1 USD

Brand Name : Harvest

Model Number : 40ft

Certification : ISO CCC

Place of Origin : China

MOQ : 1 unit

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 1000 units/month

Delivery Time : 15 days

Packaging Details : nude package

Size : 12400*2480*1580mm

Max Payload : 60 ton

AXle Brand : FUWA

King pin : 2"(50mm)or3.5"(90mm) JOST

Tire : 10.00R20/ 11.00R20/ 12R22.5

Material : Steel, Steel, Steel, Aluminium, Optional

Leaf spring : 10 / 10 / 10

Main beam : opting for high tensile steel Q345

Contact Now

3 Axles 4 Axles 40ft Skeleton Trailer Container Frame Trailer Used to transport containers

40ft Skeleton Trailer Product Description

Skeletal Container Semi Trailer
Tare weight	6000KG
Payload	40000kg-50000kg
Color and making	Customized
Size	1240024801580mm
Axle	3 axles FUWA/HJ/BPW brand optional
Main beam	Heavy duty and extra durability designed I beam; opting for high tensile steel Q345, welded by automatic submerged-arc processes. Top flange 14mm;width 140mm; bottom flange 16mm; width140mm middle flange 6 mm
Tire	11.00R20/12.00R20/11R22.5/12R22.5 Triangle, Linglong, Double star brand optional
Wheel rim	8.5-20/9.0-20/8.25-22.5/9.0-22.5/9.75 optional
Suspension	Mechanical suspension or air suspension
Leaf spring	10pcs90mm13mm
Kingpin	JOST 2”/3.5” bolt-in king pin
Landing gear	JOST two-speed, manual operating, heavy duty landing gear
Twist lock	12 no.of ISO twist lock for 1x20ft, 2x40ft, 1x40ft container
Vehicular applications	Container(20ft, 40ft, 45ft) transport
Braking system	WABCO RE6 relay value, T30/30 spring brake chamber; 40L air tanks
Painting	Complete chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Accessories	One standard tool box
Delivery detail	20 workdays after we received 30% of contract value T/T down payment

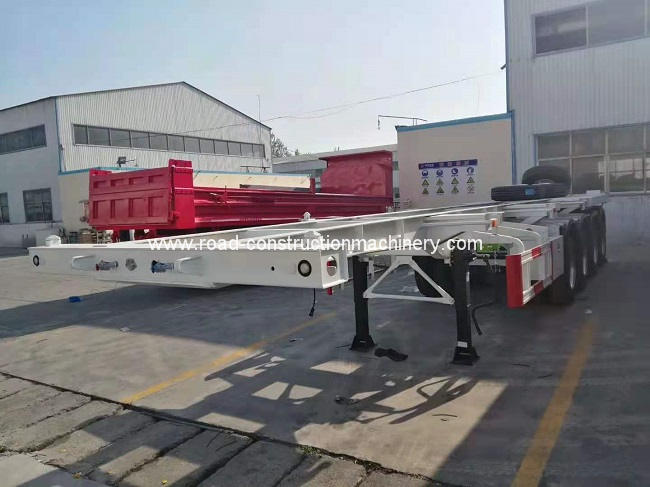

Container Frame Trailer picture

40ft Skeleton Container Frame Trailer 3 Axles 4 Axles Steel
